RAS Aquaculture
Systems
ARK AQUATECH engineers India's most reliable RAS aquaculture systems — complete RAS tank design, biofiltration, oxygen management, water quality monitoring, and hands-on operator training. Whether you are starting your first recirculating aquaculture system or scaling an existing operation, we deliver turnkey solutions backed by 12+ years of RAS fish farming expertise.
95%
Water Reuse Rate
10×
Higher Density vs Pond
30%
Faster Growth Cycles
365
Days Year-Round Production
What Is a RAS Aquaculture System & Why Is It Transforming Fish Farming in India?
A RAS aquaculture system — short for Recirculating Aquaculture System — is a closed-loop fish farming technology that continuously filters, treats, and reuses water inside the RAS tank. Unlike traditional pond farming that depends on large volumes of fresh water, a recirculating aquaculture system passes water through mechanical filtration, biofiltration, degassing, oxygenation, and disinfection stages before returning it to the culture tank. The system essentially manufactures its own controlled environment, independent of external water quality or climate.
For Indian fish farmers, RAS aquaculture systems solve three of the biggest constraints in modern aquaculture at once: land availability, water scarcity, and disease risk. A single 10,000-litre RAS tank can produce 400–800 kg of fish per cycle on just 15–20 square metres of land. Scaling the same technology across 1,000–2,000 square metres can deliver 30–50 MT annually — output that would otherwise demand several acres of traditional pond area.
ARK AQUATECH has deployed RAS fish farming installations across Andhra Pradesh, Telangana, Tamil Nadu, Maharashtra, Karnataka, and 30+ other Indian states. Our engineering team designs each recirculating aquaculture system around site-specific conditions — water source, climate, species, market proximity, and farmer experience level — to ensure every client achieves consistent, profitable results from their very first production cycle.
How RAS Aquaculture Systems Work
A step-by-step look at the recirculation loop and how ARK AQUATECH engineers it into a reliable, scalable production system.
Step 01
Mechanical Filtration
Water drawn from the RAS tank first passes through drum filters or settling tanks that remove solid waste — uneaten feed, faeces, and sludge — before it reaches the biological treatment stage. This keeps the recirculating aquaculture system clear and prevents organic overload downstream.
Step 02
Biological Filtration (Nitrification)
Filtered water flows through a biofilter packed with media that hosts nitrifying bacteria. These bacteria convert toxic ammonia excreted by fish into nitrite and then into relatively harmless nitrate, allowing the RAS tank to sustain high stocking densities without water exchange.
Step 03
Degassing & Oxygenation
Dissolved CO₂ is stripped out through degassing towers, and oxygen is reintroduced via low-head oxygenators or pure oxygen cones. Precise oxygen management keeps dissolved oxygen above 6–7 mg/L even at maximum biomass load — critical for a productive RAS aquaculture system.
Step 04
Disinfection & Return
Treated water passes through UV sterilisers or ozone units to neutralise pathogens before being returned to the culture tank. ARK AQUATECH designs each recirculating loop for a full turnover every 30–60 minutes, so water quality stays consistent across the entire RAS fish farming operation.
6 Key Advantages of RAS Aquaculture Systems
Why forward-looking Indian fish farmers are making the switch to RAS fish farming systems.
10× Higher Stocking Density
RAS aquaculture systems sustain stocking densities up to 10 times higher than open pond farming on the same footprint, because water quality is continuously controlled rather than diluted by volume, dramatically improving revenue per square metre.
Up to 95% Water Reuse
A recirculating aquaculture system reuses 90–95% of its water through continuous filtration and treatment, replacing only what is lost to evaporation and sludge removal — making RAS the most water-efficient aquaculture technology available, ideal for water-scarce regions of India.
Full Biosecurity Control
Because a RAS fish farming system is a closed loop with UV/ozone disinfection at every recirculation cycle, farmers gain near-total control over pathogen entry, dramatically reducing disease outbreaks and the need for antibiotics — a major advantage for export-grade fish and shrimp.
Location Independence
RAS aquaculture systems can be installed indoors, in urban warehouses, or in climate-controlled facilities far from natural water bodies. This location independence lets farmers grow warm-water or cold-water species anywhere in India, regardless of local climate or water source.
Precise, Stable Water Quality
Continuous monitoring and automated dosing keep temperature, pH, ammonia, and dissolved oxygen within tight tolerances at all times. This stability reduces stress-related mortality and consistently improves feed conversion ratio (FCR) compared to open systems exposed to weather swings.
Concentrated, Reusable Waste
Solid waste captured by mechanical filtration in a RAS tank is concentrated rather than diluted, making it easy to divert into biogas digesters or organic fertiliser production — turning what was once effluent into an additional revenue stream for the farm.
RAS Tank Types & Pricing
ARK AQUATECH supplies three main categories of RAS tank to suit different budgets, scales, and operational contexts. Each option is engineered for optimal solids removal, flow uniformity, and ease of harvest — the three mechanical pillars of a productive RAS aquaculture system. Our team will recommend the right RAS tank type based on your investment capacity, production target, and site conditions, with transparent RAS system price quotations.

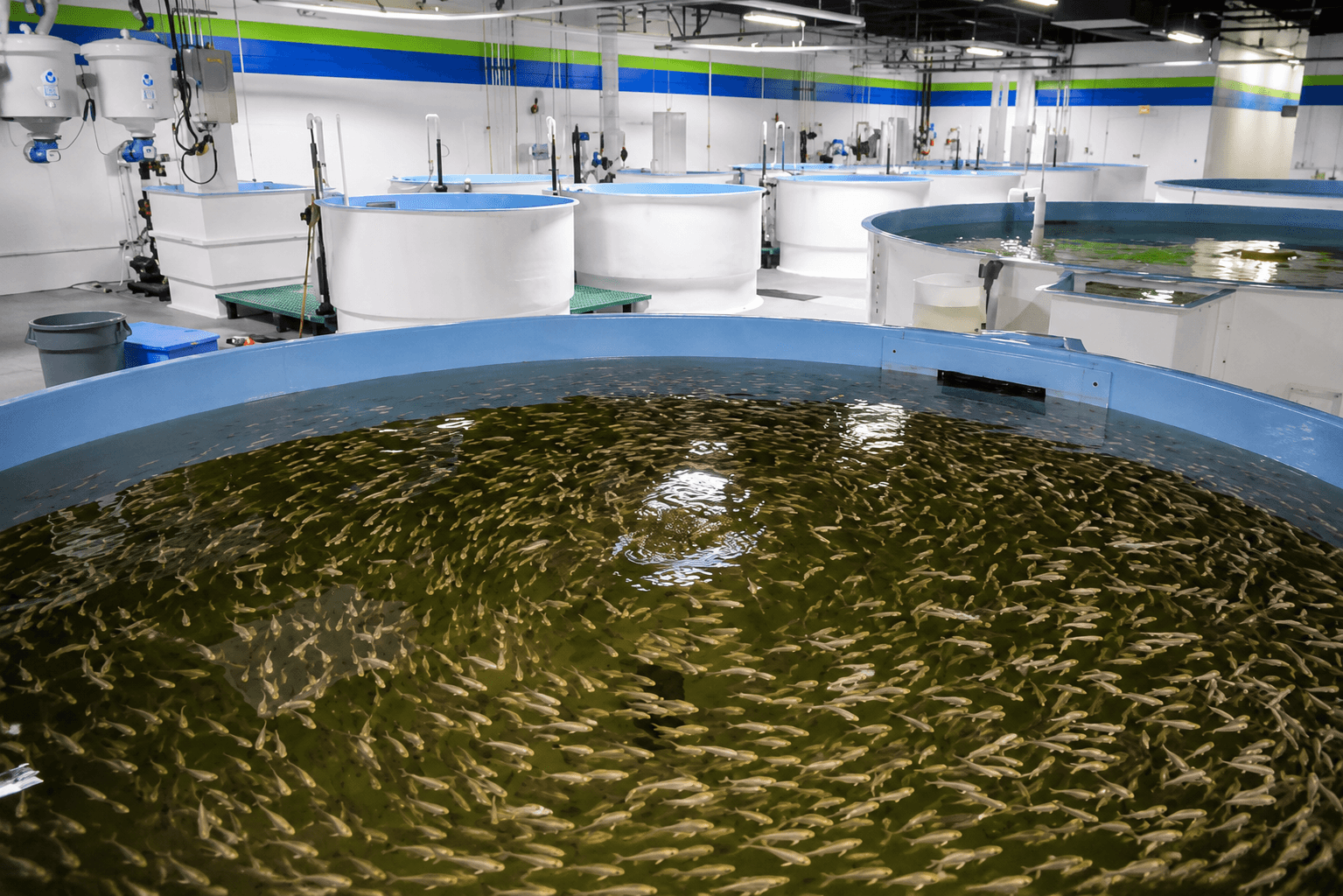

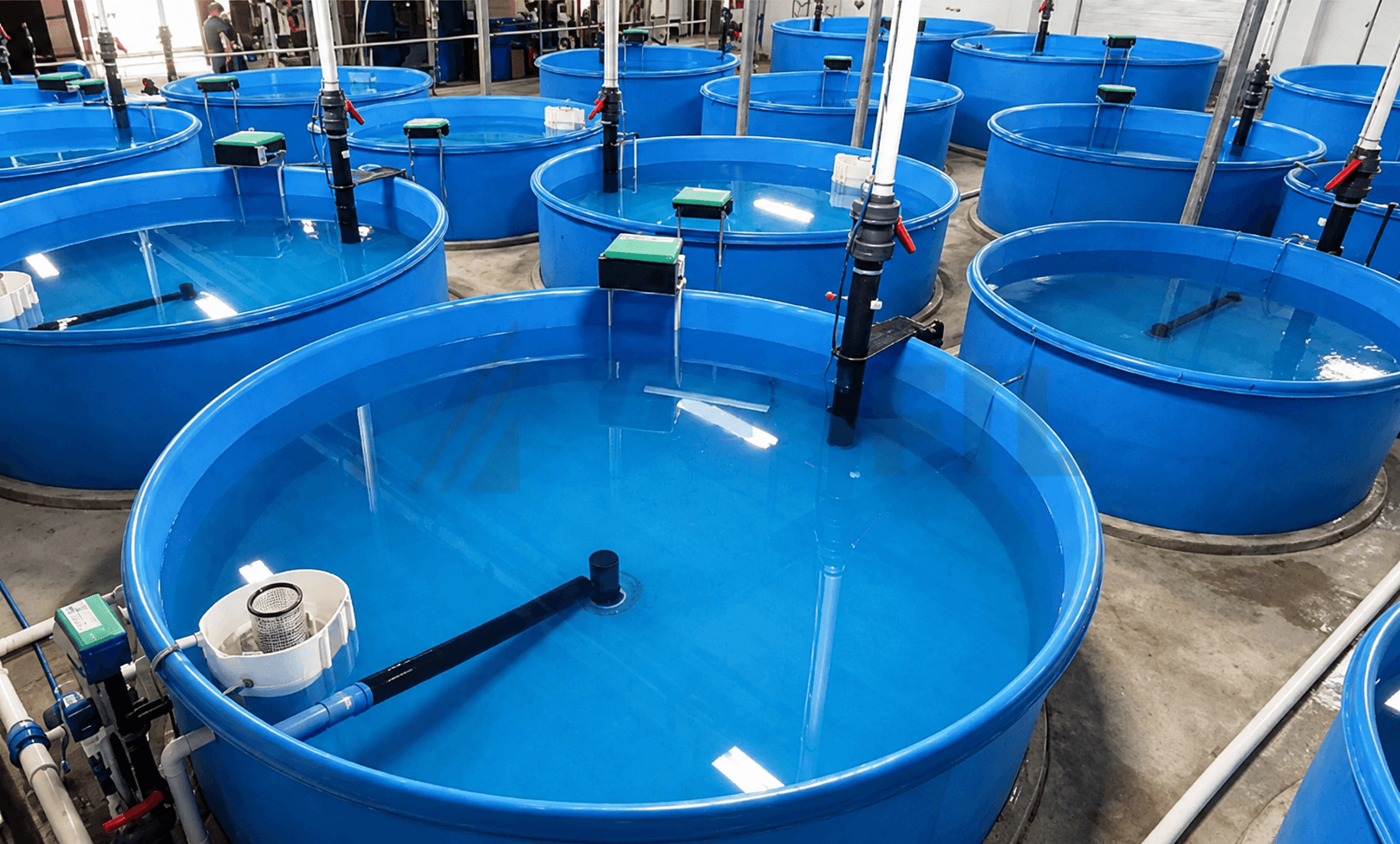

Circular RAS Tanks
Food-grade fibreglass or HDPE circular tanks in 5,000 L – 1,00,000 L capacities, engineered for uniform self-cleaning water flow and optimal solids removal. The most common RAS tank configuration for commercial recirculating aquaculture systems. RAS system price starts from ₹1.2 lakh for an entry-level modular unit.
Rectangular Raceway Tanks
Linear raceway-style RAS tanks suited for species that prefer directional flow, such as trout and barramundi. Available in modular sections that can be scaled up as production grows, with shared biofiltration and pumping infrastructure across the raceway bank.
Modular Container RAS Units
Fully containerised, plug-and-play RAS aquaculture systems housed in insulated shipping containers — complete with biofilter, pumps, oxygenation, and automation pre-installed. Ideal for urban aquaculture, remote sites, and farmers who want rapid deployment with minimal civil work.
Which Species Does ARK AQUATECH Support in RAS?
Our RAS aquaculture systems are species-specific engineered. Stocking density, flow rate, biofilter sizing, and harvest protocols differ significantly between tilapia, barramundi, trout, and shrimp. The table below shows recommended parameters for each species in an ARK AQUATECH RAS tank setup.
| Species | Stocking Density | Harvest Cycle |
|---|---|---|
| Tilapia (Nile & Hybrid) | 40–80 kg / m³ | 150–180 days |
| Barramundi (Seabass) | 30–60 kg / m³ | 180–220 days |
| Pangasius (Catfish) | 40–70 kg / m³ | 150–200 days |
| Shrimp (L. vannamei) | 3–5 kg / m³ | 90–110 days |
| Trout (Cold Water RAS) | 25–45 kg / m³ | 180–240 days |
| Ornamental / Koi Fish | Custom stocking | Varies by species |
RAS Aquaculture Cost Breakdown (India, 2024)
Transparency in RAS aquaculture cost is central to how ARK AQUATECH operates. The figures below represent indicative market prices for a standard RAS installation in India. Actual costs vary by location, tank type, species, and scale. Contact us for a free detailed project report (DPR) with site-specific RAS system price and ROI projections.
| Cost Item | Indicative Range |
|---|---|
| RAS Tank (10,000 L Fibreglass/HDPE) | ₹1,20,000 – ₹2,50,000 |
| Biofilter & Filtration Skid | ₹80,000 – ₹2,00,000 |
| Oxygenation & Degassing Unit | ₹60,000 – ₹1,50,000 |
| UV / Ozone Disinfection System | ₹40,000 – ₹1,20,000 |
| Automation & Water Quality Monitoring | ₹50,000 – ₹1,50,000 |
| Feed & Fingerlings (Per Cycle) | ₹60,000 – ₹1,50,000 |
| Electricity (Per Cycle, 150 days) | ₹40,000 – ₹90,000 |
| Starter RAS System (Single Loop) | ₹8 – ₹18 Lakh (All-in) |
ARK AQUATECH's RAS Aquaculture Support: From Setup to Harvest
Setting up a successful RAS tank goes far beyond installing a container and a pump. The difference between a profitable RAS farm and a failed one almost always comes down to the quality of initial system design, the precision of biofilter sizing, and the consistency of water quality management during the first few weeks — what practitioners call the biofilter cycling phase. This is where ARK AQUATECH's engineering expertise and field experience become your greatest asset.
Our RAS aquaculture system process begins with a detailed site assessment: water source analysis, structural loading (for elevated or indoor tanks), power availability, ambient temperature range, and market access for the target species. This data shapes every subsequent design decision — tank size and count, biofilter media volume, supplemental heating or cooling, biosecurity infrastructure, and harvest logistics. We do not apply a one-size-fits-all template; every ARK AQUATECH RAS fish farming project is custom-engineered for its specific context.
Oxygenation and degassing form the heartbeat of any recirculating aquaculture system. High-density culture demands continuous, precise oxygen delivery while excess CO₂ must be stripped efficiently to avoid stressing the stock. ARK AQUATECH sizes oxygenation and degassing equipment using flow and biomass load calculations specific to each tank geometry, ensuring stable water chemistry even at peak stocking density. Our systems include primary and backup pumps, automated changeover relays, and real-time dissolved oxygen and ammonia monitoring with SMS alerts — so you are protected around the clock.
Water quality management in RAS aquaculture systems is a dynamic daily discipline. As fish biomass grows, ammonia and CO₂ production rises, and solids accumulate in the mechanical filter. Our water quality protocols — including daily nitrate and alkalinity tracking, scheduled solids removal, and periodic partial water exchange — are documented in detailed farm management standard operating procedures (SOPs) that our team trains your operators to execute precisely. This systematic approach is what consistently delivers harvest yields at the top end of species potential rather than the average.
Post-harvest, ARK AQUATECH supports clients with market linkage advice, value-added processing options (live fish transport, chilled packing, dried and smoked products), and planning for the next production cycle. Our relationship with each farmer does not end at system commissioning — we are your long-term partner in building a profitable, sustainable RAS aquaculture enterprise.
RAS Aquaculture Systems — FAQs
Answers to the most common questions about RAS system price, setup cost, species selection, and recirculating aquaculture technology in India.
What is a RAS aquaculture system and how does it work?
A RAS aquaculture system, short for Recirculating Aquaculture System, is a closed-loop fish farming technology where water is continuously filtered, biologically treated, oxygenated, and disinfected before being returned to the RAS tank. Mechanical filters remove solid waste, biofilters convert ammonia into safer compounds via nitrification, and degassing and oxygenation units maintain optimal water conditions. The result is a highly controlled, water-efficient system capable of very high stocking densities.
What is the RAS aquaculture cost in India?
RAS aquaculture cost in India varies based on tank capacity, species, and level of automation. A single 10,000-litre RAS tank complete with biofiltration, oxygenation, disinfection, and monitoring costs approximately ₹3–₹6 lakh to set up. A starter commercial RAS loop ranges from ₹8 to ₹18 lakh depending on tank type, automation level, and target production capacity. ARK AQUATECH provides free detailed project reports (DPR) with full RAS aquaculture cost breakdowns on request.
What is the RAS system price from ARK AQUATECH?
RAS system price at ARK AQUATECH starts from ₹1.2 lakh for an entry-level 5,000–10,000 litre circular RAS tank inclusive of frame, plumbing, and outlet fittings, before biofiltration and automation add-ons. Larger and fully modular container RAS units are priced on request based on specifications. Contact our team for a current RAS system price list.
Which fish species grow best in a RAS aquaculture system?
Barramundi, tilapia, and pangasius are among the most popular RAS fish farming species due to their tolerance for high density and stable water parameters. Cold-water species like trout thrive in temperature-controlled RAS raceway systems, while Pacific white shrimp (L. vannamei) is increasingly farmed in RAS for biosecure, disease-free production. ARK AQUATECH designs each RAS aquaculture system around the specific species, density target, and market of each client.
How much space does a RAS aquaculture system need?
RAS aquaculture systems are extremely space-efficient because of their high stocking densities. A single 10,000-litre RAS tank producing 400–800 kg of fish per cycle can be installed in as little as 300–500 sq ft, including filtration and support infrastructure. Multi-tank commercial RAS facilities can achieve 30–50 MT of annual production within 5,000–10,000 sq ft — output that would otherwise require several acres of pond area.
Do I need continuous electricity for a RAS aquaculture system?
Yes — continuous pumping, filtration, and oxygenation are essential in a RAS tank because fish rely entirely on mechanical systems for water quality, unlike open ponds. ARK AQUATECH designs every RAS aquaculture system with redundant pumps, backup blowers, and automatic generator changeover switches. Our smart automation platform sends instant alerts if flow, oxygen, or power parameters drop out of range, so corrective action can be taken before any stock is affected.
